W02-HC-H01

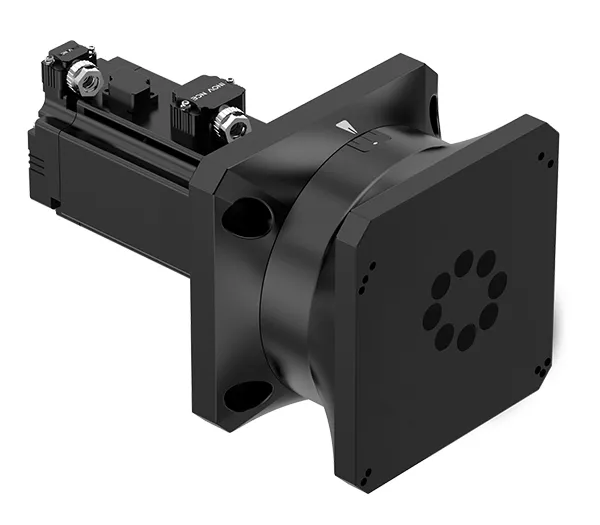

Rotary Axis for Laser Tube Cutting Head

Laser cutting head spindle used for processing metal tubes and profiles

Rotary Axis for Laser Tube Cutting Head

W02-HC-H01

Rotary Axis for Laser Tube Cutting Head

Laser cutting head spindle used for processing metal tubes and profiles

This rotary spindle is designed for laser tube cutting heads, enabling efficient processing of metal tubes and profiles.

Request a Quote
Specifications
Applicable Laser Cutting Head LCN03A/GS03C/LCF Series
Motor Power 400W
Gearbox Reduction Ratio 1:100

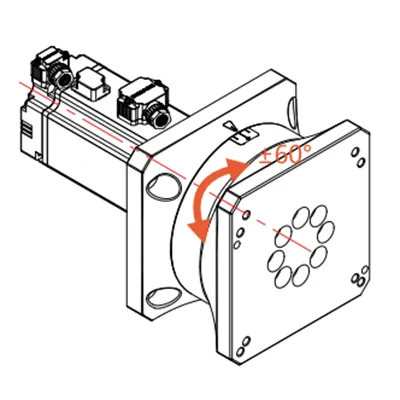

Swing Range ±60°
Rated Rotation Speed 30r/min
Angular Acceleration 240rad/s2
Positioning Accuracy 1arcmin
Weight 3.5kg
Features
  • Swing angle ±60°
  • Suitable for bevel cutting applications
  • Equipped with servo motor
  • High-quality precision machining
  • Rotary Axis for Laser Tube Cutting Head
