LWY08A0

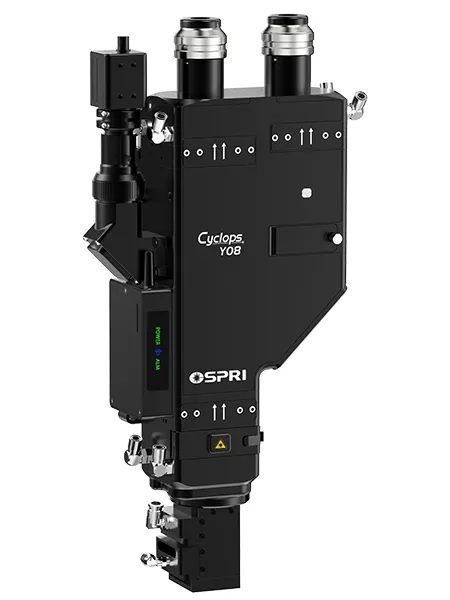

8kW Dual-Wavelength Hybrid Laser Welding Head

Laser welding head for welding highly reflective metals

8kW Dual-Wavelength Hybrid Laser Welding Head
  • 8kW Dual-Wavelength Hybrid Laser Welding Head
    Air knife blowing
  • 8kW Dual-Wavelength Hybrid Laser Welding Head
    Coaxial blowing
  • 8kW Dual-Wavelength Hybrid Laser Welding Head

    • LWY08A0

    8kW Dual-Wavelength Hybrid Laser Welding Head

    Laser welding head for welding highly reflective metals

    The 8kW dual-wavelength hybrid laser welding head is engineered for the challenges of welding highly reflective metals such as copper and aluminum. By combining fiber laser and semiconductor laser sources, it significantly improves absorption rates, delivering stable, high-quality welds even on difficult materials.

    This hybrid laser welding head integrates collision protection and contamination monitoring, ensuring uninterrupted operation and fast recovery in case of disruptions. Built-in safety and alarm functions allow operators to address issues quickly, minimizing downtime and safeguarding production efficiency.

    Request a Quote
    Product Manual
    Specifications
    Model LWY08A0
    Rated Power 8kW
    Wavelength 1080nm+915nm
    Semiconductor Collimation Length 100mm
    Fiber Collimation Length 100mm/150mm/200mm
    Focal Length 200mm/250mm/300mm
    Blowing Method Coaxial/paraxial
    Auxiliary Gas Pressure ≤1MPa
    Weight 9.6kg
    Application

    With its dual-wavelength design, this hybrid welding head is ideal for medium to high-power welding of stainless steel, carbon steel, copper, and aluminum alloys. Its versatility makes it suitable for industries requiring both strength and precision, from automotive manufacturing to energy storage and electronic components.
    Features

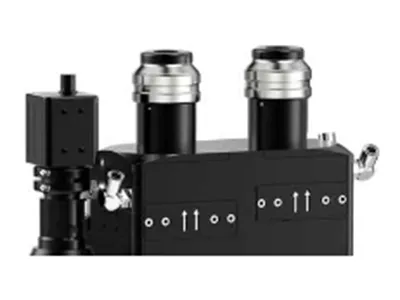

    Hybrid welding for greater absorption
    Hybrid welding for greater absorption

    Dual-wavelength synergy (1080 nm + 915 nm) enhances absorption in highly reflective metals such as aluminum, delivering deeper penetration, brighter seams, and consistently high-quality welds.

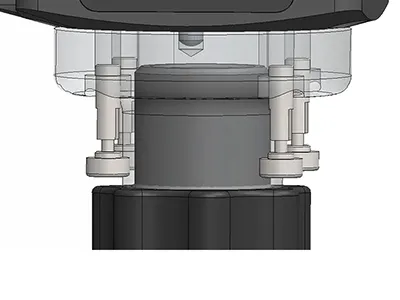

    Collision protection for reliable operation
    Collision protection for reliable operation

    Equipped with coaxial / air-knife blowing assembly, the head safeguards the optics from impact, allowing non-destructive collisions and rapid recovery for continuous operation.

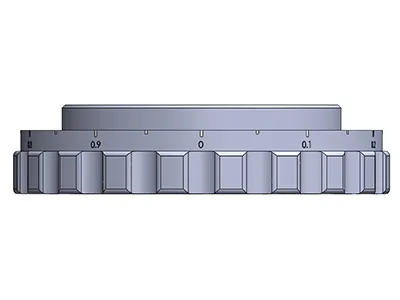

    Helical screw mechanism for precision focusing adjustment
    Helical screw mechanism for precision focusing adjustment

    A spiral adjustment shifts the focal point by 1 mm with each 360° turn, providing accurate and repeatable focusing control.

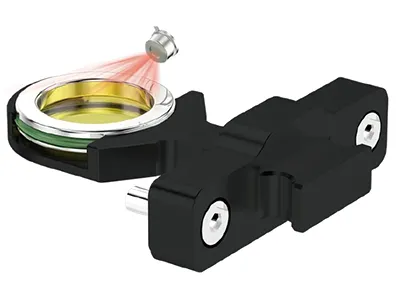

    Contamination monitoring with alarm feedback
    Contamination monitoring with alarm feedback

    Real-time contamination detection triggers alarms and automatic shutdown to prevent defective welds and protect the laser head from damage.
