ACU03-PC-H01

Rotary Axis for Fiber Laser Cutting Head

5-axis machining center spindle designed for processing sheet metals, metal profiles and metal components

Rotary Axis for Fiber Laser Cutting Head
  • Rotary Axis for Fiber Laser Cutting Head
  • Rotary Axis for Fiber Laser Cutting Head

    • ACU03-PC-H01

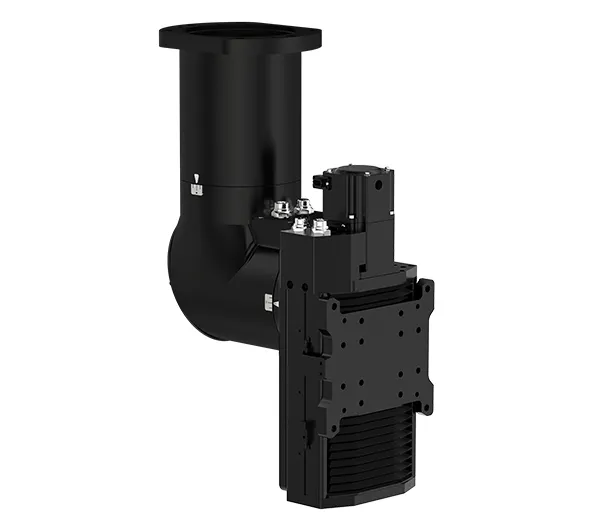

    Rotary Axis for Fiber Laser Cutting Head

    5-axis machining center spindle designed for processing sheet metals, metal profiles and metal components

    This 5-axis machining center rotary spindle is designed for fiber laser cutting heads. It is suitable to process sheet metals, structural metal profiles, and press-hardened (hot-stamped) steel with precision.

    Request a Quote
    Product Manual
    Specifications
    Applicable Laser Cutting Head GM Series/GH Series
    Rated Torque of A-axis/C-axis 100N·m
    Rated Speed of A-axis/C-axis 37r/min
    Positioning Accuracy of A-axis/C-axis 1arcmin
    Reduction Ratio of A-axis/C-axis 81
    A-axis Movement Range ±100°
    C-axis Movement Range ±200°
    Repeated Positioning Accuracy of U-axis < 0.01mm
    Stroke of U-axis 60mm
    Max. Speed of U-axis 250mm/s
    Weight 13.5kg
    Features

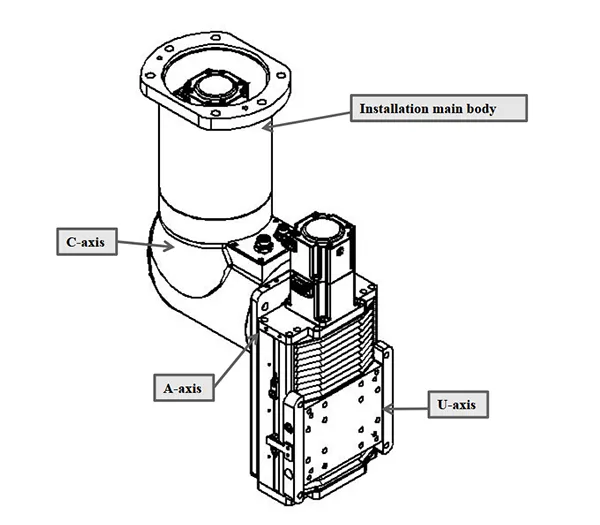

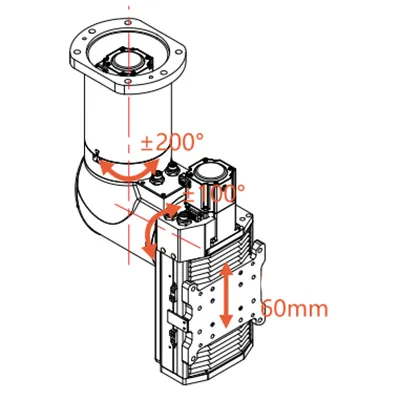

    • A-axis rotation ±100°, C-axis rotation ±200°
    • Equipped with U-axis following module for precise contour tracking
    • High-precision harmonic drive with servo motor
    • Advanced machining quality for long-term stability
    • Rotary Axis for Fiber Laser Cutting Head
