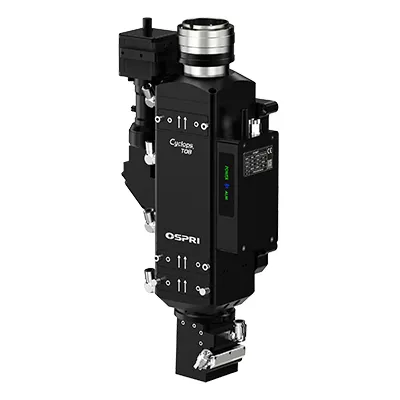

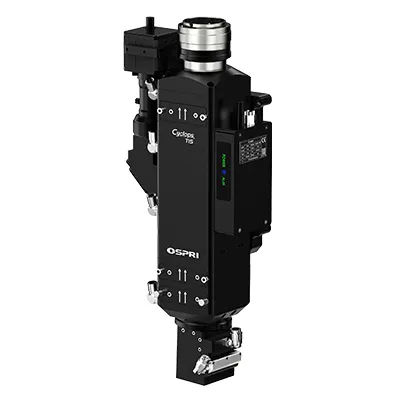

Laser Welding Head with Temperature Monitoring

The temperature monitoring laser welding head combines high-power capability with real-time process control to deliver stable and efficient welding. Designed for demanding applications, these laser welding heads incorporate contamination monitoring, collision protection, and advanced water-cooling system for continuous operation. Built-in temperature control enables precise adjustment of welding parameters, that provides reliable, high-precision solutions for processing various metals such as stainless steel, carbon steel, copper, and aluminum alloys.
Laser Welding Heads
    1. Hardware & Tools
    2. Hardware & ToolsLaser processing heads for the production of fasteners, power tools and hand tools
    1. Bathroom Accessories
    2. Bathroom AccessoriesLaser processing heads for the precise forming of metal parts in the bathroom industry
    1. Automotive
    2. AutomotiveLaser processing heads for metal parts cutting in the automotive industry
    1. Lithium Battery
    2. Lithium BatteryLaser processing heads for battery production
    1. Powertrain
    2. PowertrainLaser heads for assembling automotive power transmission components including gears and shafts
    1. Airbag
    2. AirbagLaser heads for welding automotive airbag components
Components for Laser Cutting & Welding Systems

From cutting to welding, we deliver precision components with the scale and capacity to produce 50,000+ sets each year

How Can We Help?

Whether it’s a custom specification or expert advice, OSPRI experts are here to guide you with the right laser head for your cutting and welding needs.

Contact Us

Laser welding can be used across a wide range of metals, including carbon steel, stainless steel, aluminum alloys, and copper alloys. It also supports dissimilar metal welding, such as copper to aluminum or stainless steel to aluminum, making it highly versatile for different industrial needs.

The thickness that can be welded depends directly on the laser power. Higher power enables deeper penetration and thicker plate welding. When selecting a welding system, factors such as laser power, material type, and joint requirements should all be considered to ensure stable weld quality and efficiency.

A typical laser welding head consists of several key units:

  • Optical system: Lenses and collimators that shape and focus the beam
  • Swing mechanism: Dual-axis swing in some heads improves seam quality for different materials and thicknesses
  • Cooling system: Usually water or air cooling to manage heat during welding
  • Gas shielding system: Protects the weld area with gases like argon or nitrogen to prevent oxidation
  • Control system: Allows adjustment of focus, height, and swing modes for different applications
  • Connection interfaces: Link the welding head with the laser source, robots, or automated systems

Spot diameters usually range from 0.1 mm to 3 mm, depending on the laser source, optics, and application. Precision welds for electronics or medical devices often use ~0.1 mm spots, while thicker plates and large structures require >1 mm spots for faster speed and deeper penetration. Swing welding heads can dynamically adjust spot size during welding to optimize quality.

Yes. Thanks to its highly focused and non-contact nature, the laser beam can reach narrow gaps, deep recesses, and complex geometries where traditional torches cannot. Some models are also compact or include swing optics, making them especially useful for automotive manufacturing, mold repair, and precision component welding.

Compatibility depends on parameters rather than brand. The key factors are:

  • Laser interface/connector type (e.g., QBH, QD): Must match the laser source
  • Power rating: The head must support the intended laser power
  • Laser wavelength: Most fiber laser heads are designed for 1064 nm
  • Control protocol: IO, RS232, or Ethernet must align with the system
  • Cooling and gas connections: Fittings should match the overall setup

Tip: If you’re unsure whether your system matches, simply share your laser model, connector type, and control details with our technical support team, and we’ll confirm compatibility for you.
