AB02-LD-H01

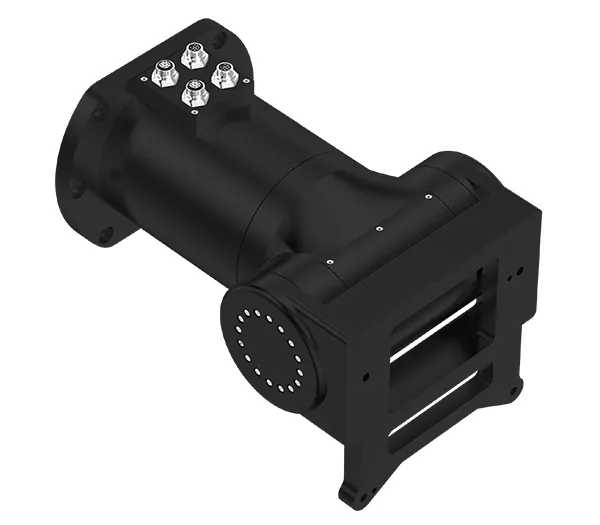

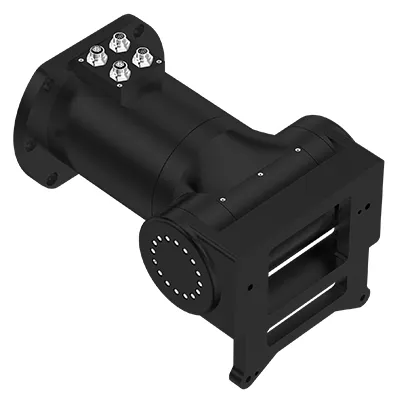

Rotary Axis for Laser Bevel Cutting Head

Laser cutting head spindle used for producing bevelled cuts on metal parts

Rotary Axis for Laser Bevel Cutting Head
  • Rotary Axis for Laser Bevel Cutting Head
  • Rotary Axis for Laser Bevel Cutting Head

    • AB02-LD-H01

    Rotary Axis for Laser Bevel Cutting Head

    Laser cutting head spindle used for producing bevelled cuts on metal parts

    This rotary laser cutting head spindle is engineered for producing precise angled cuts on flat metal sheets. Its smooth multi-axis motion keeps the path stable and the bevel line clean, making it an ideal choice for flat bevel cutting applications in metal fabrication.

    Request a Quote
    Product Manual
    Specifications
    Applicable Laser Cutting Head GHB Series
    Rated Torque of A-axis 58N·m
    Rated Torque of B-axis 133N·m
    A-axis Movement Range ±45°
    B-axis Movement Range ±90°
    Repeated Positioning Accuracy of A-axis/B-axis ±7arcsec
    Rated Speed of A-axis 26r/min
    Rated Speed of B-axis 25r/min
    Weight 11KG

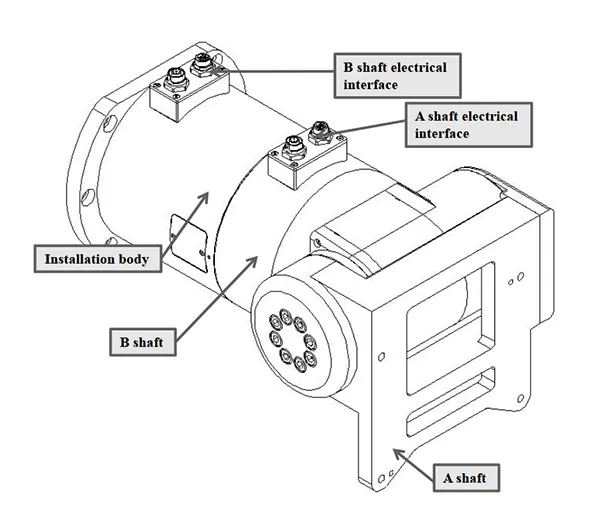

    Features

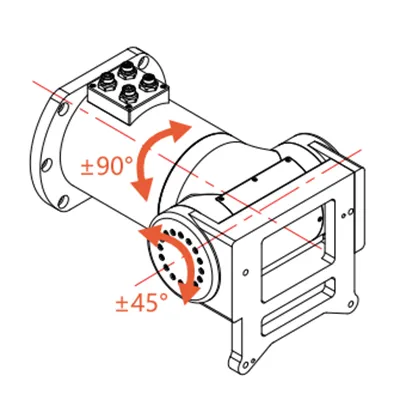

    • A-axis rotation: ±45°
    • B-axis rotation: ±90°
    • Integrated harmonic motor drive
    • High-precision machining quality
    • Rotary Axis for Laser Bevel Cutting Head
    Related Laser Cutting Heads
    Find The Perfect Laser Head for Your Laser Processing Needs

    Whether you need a laser head built to your specifications or guidance on choosing the right solution, our team is here to help.

    Get in Touch
    Laser Cutting Heads
      1. Hardware & Tools
      2. Hardware & Tools Laser cutting heads for the laser processing of fasteners, power tools and hand tools
      1. Bathroom Accessories
      2. Bathroom Accessories Laser cutting heads for processing metal parts in the bathroom industry
      1. Automotive
      2. Automotive Laser cutting heads for the metal processing in the automotive industry

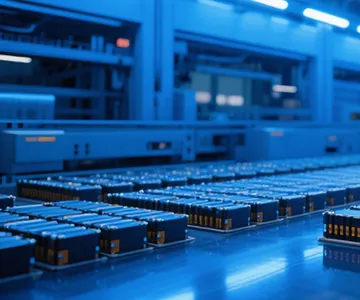

      1. Lithium Battery
      2. Lithium Battery Laser cutting heads for battery production

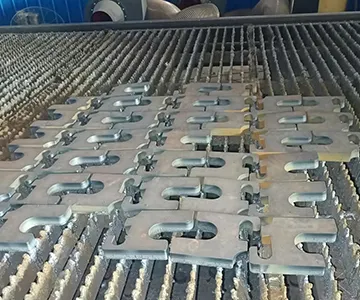

      1. 2D Flat Cutting
      2. 2D Flat Cutting Laser cutting heads for 2D flat metal sheet cutting

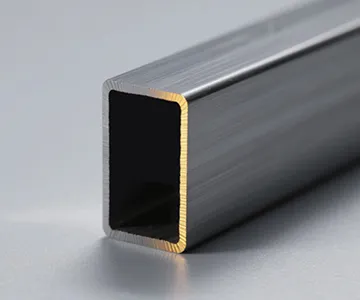

      1. Tube & Profile Cutting
      2. Tube & Profile Cutting Laser cutting heads for the cutting of metal tubes and profiles

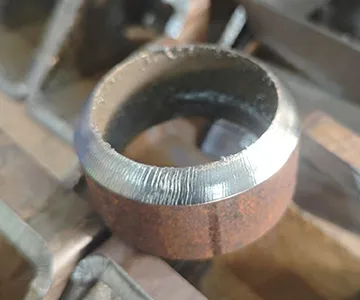

      1. Bevel Cutting
      2. Bevel Cutting Laser cutting heads for producing bevelled edges on metals

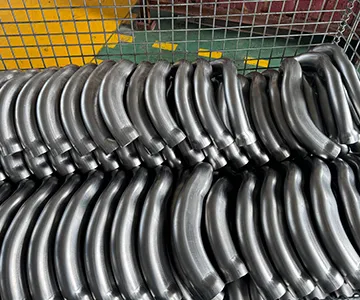

      1. 3D Cutting
