AC01-LD-H03

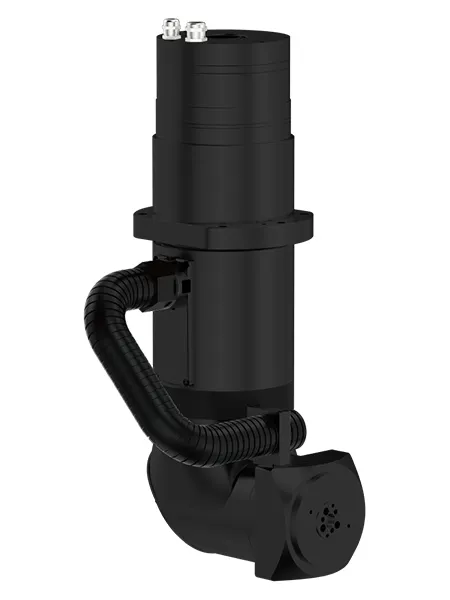

Rotary Axis for 3D Robotic Laser Cutting Head

5-axis machining center spindle designed for multi-surface and multi-directional machining of sheet metals and metal components

Rotary Axis for 3D Robotic Laser Cutting Head

AC01-LD-H03

Rotary Axis for 3D Robotic Laser Cutting Head

5-axis machining center spindle designed for multi-surface and multi-directional machining of sheet metals and metal components

This rotary axis for 3D robotic laser cutting head is engineered for 5-axis machining centers, enabling multi-surface and multi-directional processing of sheet metals and metal components. It is particularly well-suited for applications such as 3D sheet metal forming and hot-stamped steel processing.

Request a Quote
Product Manual
Specifications
Model AC01-LD-H03
Applicable Laser Cutting Head LCR04/LCR03
Rated Torque of A-axis 58N·m
Rated Torque of C-axis 190N·m

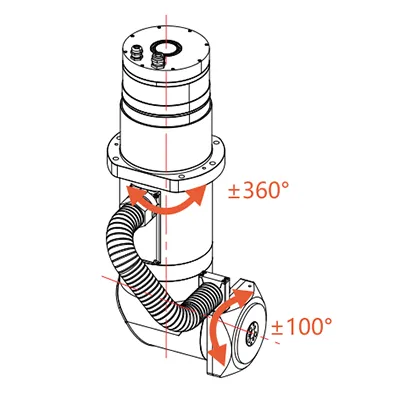

A-axis Movement Range ±100°
C-axis Movement Range ±360°
Rated Speed of A-axis 26r/min
Rated Speed of C-axis 23r/min
Repeated Positioning Accuracy of A-axis/C-axis 7arcsec
Weight 17kg
Features
  • A-axis rotation range of ±100°
  • C-axis rotation range of 360°
  • QBH fiber passage through the C-axis center
  • Integrated harmonic motor drive
  • High-precision machining quality
  • Rotary Axis for 3D Robotic Laser Cutting Head
