Laser Consumables

Fiber laser consumables and spare parts for laser heads

Consumables for laser heads are essential to maintaining stable equipment performance. They directly influence the precision and efficiency of cutting or welding operations, while also affecting the service life and safety of the laser processing machines. Regular replacement and proper maintenance of these spare parts help minimize downtime, reduce failures, and keep the laser processing running smoothly.

Keeping commonly used consumables in stock is not just convenient but important for high-intensity or continuous production lines. Having the right spare parts in stock and readily available allows for quick replacements when required, prevents unexpected disruptions, and keeps production on schedule. This ensures all the delivery schedules are met, which results in enhanced overall efficiency and customer satisfaction.

Request a Quote
Laser Consumables

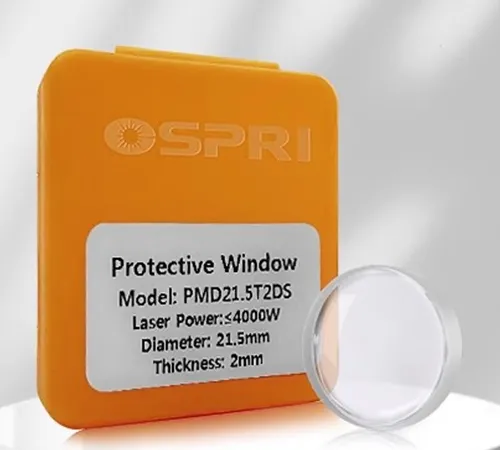

Laser Protection Windows
  • Laser Protection Windows
  • Laser Protection Windows
  • Laser Protection Windows
  • Laser Protection Windows
    • Laser Protection Windows

    Specifications of Typical Models

    Model Diameter (mm) Thickness (mm) Applicable Laser Power Rating

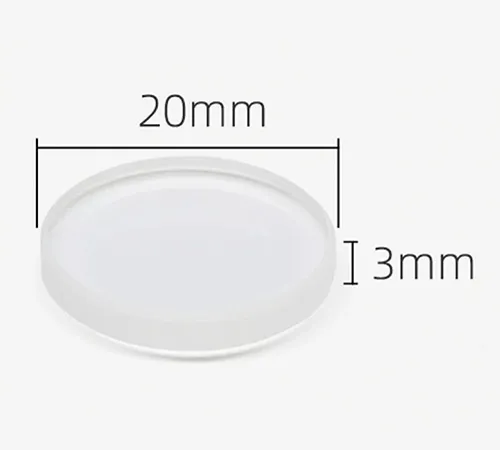

    PMD20T3DS 20 3 ≤4kW

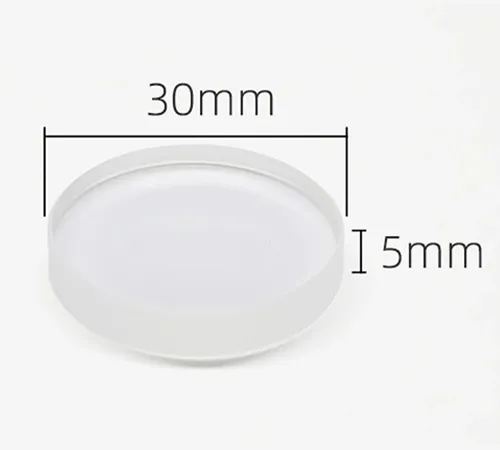

    PMD30T5DS 30 5 ≤4kW
    PMD37T7DS 37 7 ≤6kW, ≤15kW
    PMD37T3DS 37 3 ≤8kW, ≤20kW

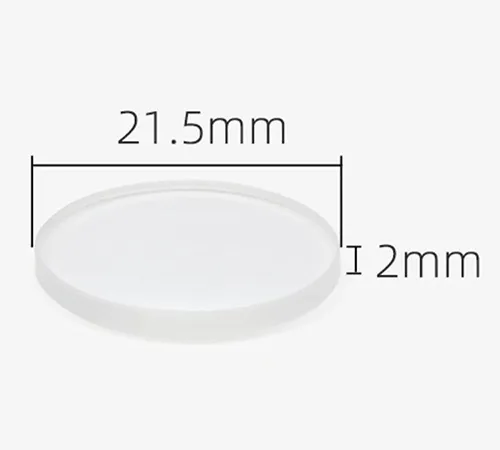

    PMD21.5T2DS 21.5 2 ≤4kW, ≤6kW, ≤15kW
    PMD34T5DS 34 5 ≤15kW
    Request a Quote
    Laser Nozzles
  • Laser Nozzles
    FSN02-A/B
  • Laser Nozzles
    FSN03-A/B
  • Laser Nozzles
    FSN36-A
    • Laser Nozzles

    Specifications of Typical Models

    Model Outer Diameter (mm) Height (mm) Thread Orifice Diameter (mm)

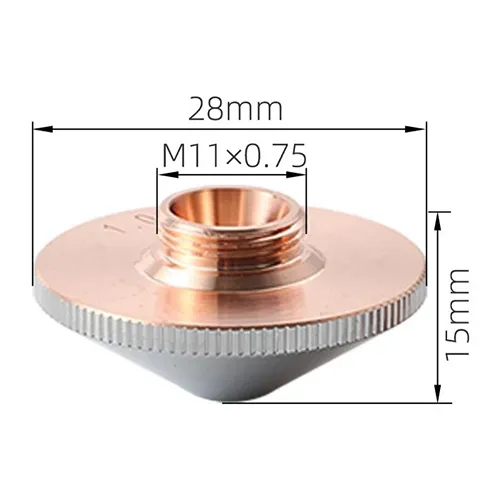

    FSN02-A Series 28 15 M11 1.0, 1.2, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 6.0
    FSN02-B Series
    FSN07-A Series 15 19 M8 1.0, 1.2, 1.5, 2.0, 3.0
    FSN07-B Series

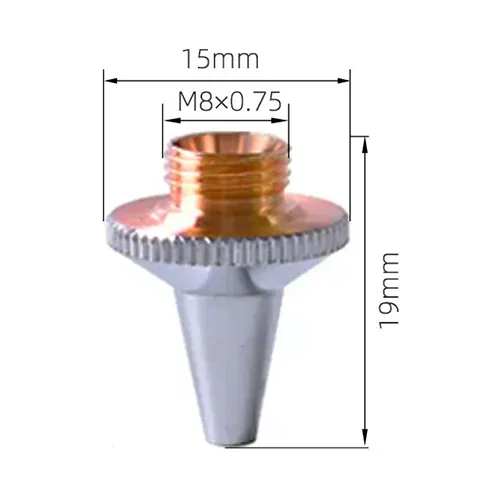

    FSN03-A Series 15 19 M8 0.8, 1.0, 1.2, 1.5, 2.0,

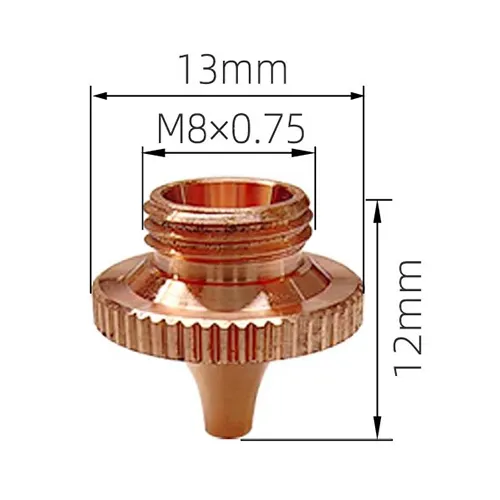

    FSN36-A Series 13 12 M8 0.5, 0.8, 1.0, 1.2, 1.5, 2.0
    FSN13-A Series 15 19 M8 1.0, 1.2, 1.3, 1.4, 1.5, 1.6, 1.8, 2.0, 2.5, 3.0, 3.5, 4.0,
    FSN13-B Series 1.0, 1.2, 1.4, 1.5, 1.6, 1.8, 2.0, 2.5, 3.0,
    FSN09-B Series 28 15 M11 1.2, 1.4, 1.5, 1.6
    FSN20-A Series 28 15 M11 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0
    Note: In the model code, A indicates single-layer and B indicates double-layer.
    Request a Quote
    Laser Ceramic Rings
  • Laser Ceramic Rings
    FC-02
  • Laser Ceramic Rings
    FC-11
  • Laser Ceramic Rings
    FC-40
    • Laser Ceramic Rings

    Specifications of Typical Models

    Model Ceramic End Outer Diameter (mm) Metal End Outer Diameter (mm) Thread Height (mm)

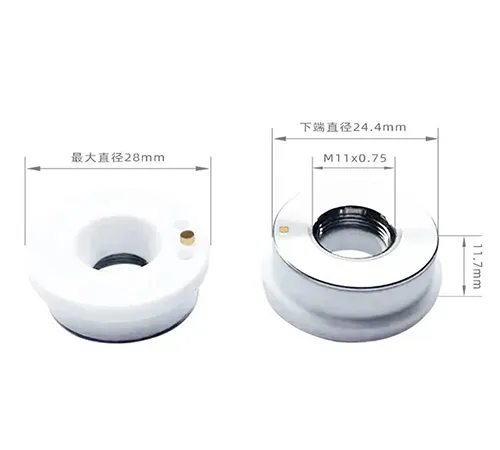

    FC-02 28 24.4 M11 11.7

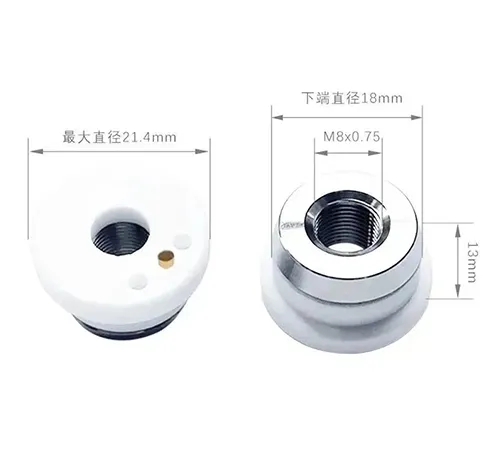

    FC-40 21.4 18 M8 13

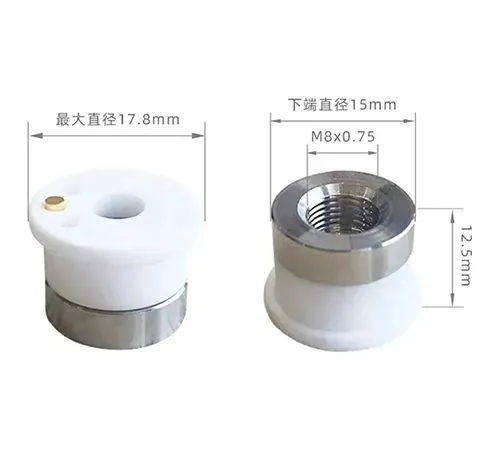

    FC-11 17.8 15 M8 12.5
    FC-07 19.4 15.9 M8 12.5
    FC-14 41 36 M11 21.7
    FC-04 25 18 M10 19
    Request a Quote

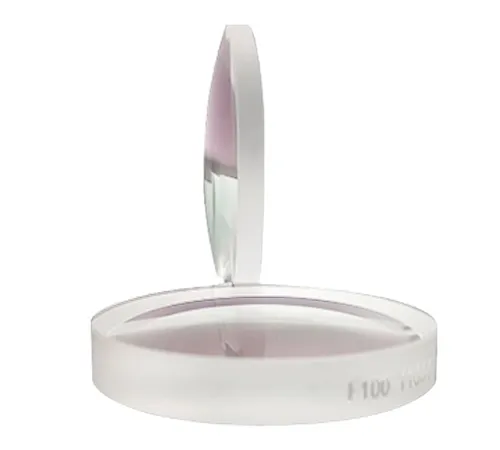

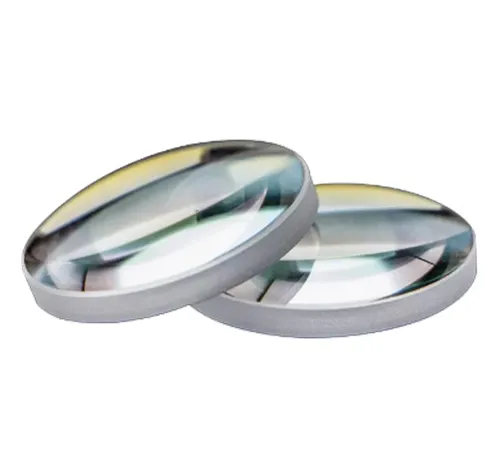

    Focusing/Collimating Lenses
  • Focusing/Collimating Lenses
  • Focusing/Collimating Lenses
    • Focusing/Collimating Lenses

    Specifications of Typical Models

    Power Diameter (mm) Focal Length
    2kW 30 F75/F100/F125/F150
    4kW 30 F75/F100/F125/F150/F200
    6kW 37 F100/F150/F200
    8kW 37 F100/F150/F200
    12kW 37 F100/F200
    15kW 37 F100/F200
    Request a Quote

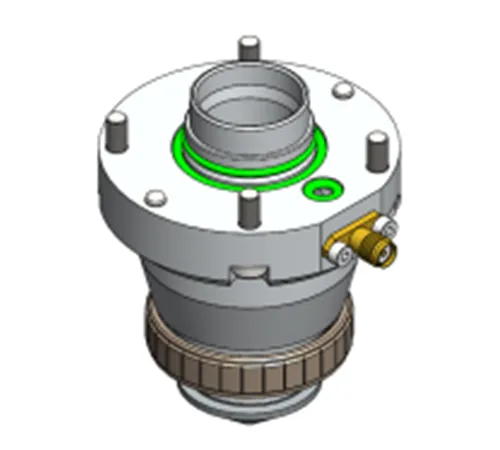

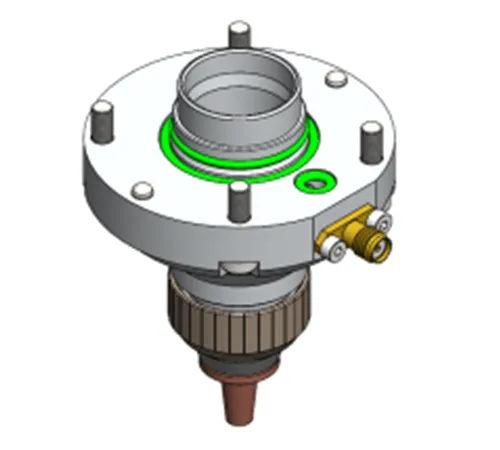

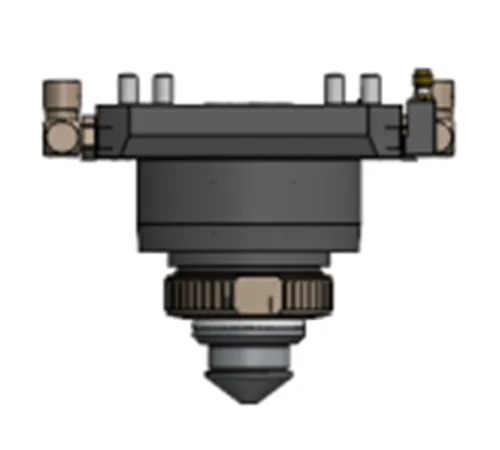

    Laser Nozzle Sensors
  • Laser Nozzle Sensors
    CB-20
  • Laser Nozzle Sensors
    CC-23
  • Laser Nozzle Sensors
    KB-01-H01
  • Laser Nozzle Sensors
    KB-03-H01
    • Laser Nozzle Sensors

    Specifications of Typical Models

    Model Applicable Laser Head Focal Length Flat/Pointed
    CB-20 GS03B F125 Flat
    CC-23 GS03B F125 Pointed
    KB-01-H01 GHB Series F200 Flat
    KB-03-H01 GHB Series F300 Pointed
    MC-02 LCR03 F125 Pointed
    MC-03 LCR03 F150 Pointed
    Request a Quote
