FROG 200SE

Capacitive Height Controller

Fiber laser control system used to monitor and control the stand-off distance between the nozzle and the workpiece surface

Capacitive Height Controller
  • Capacitive Height Controller
  • Capacitive Height Controller

    • FROG 200SE

    Capacitive Height Controller

    Fiber laser control system used to monitor and control the stand-off distance between the nozzle and the workpiece surface

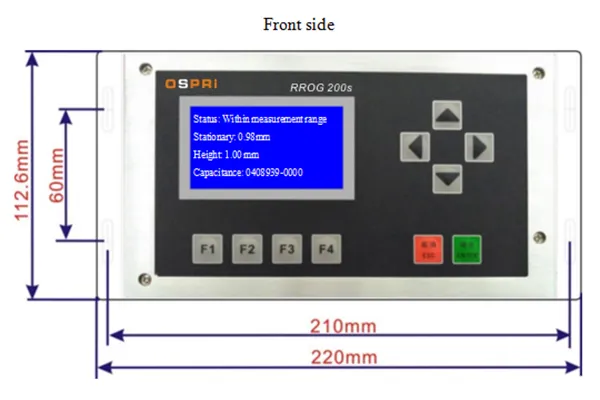

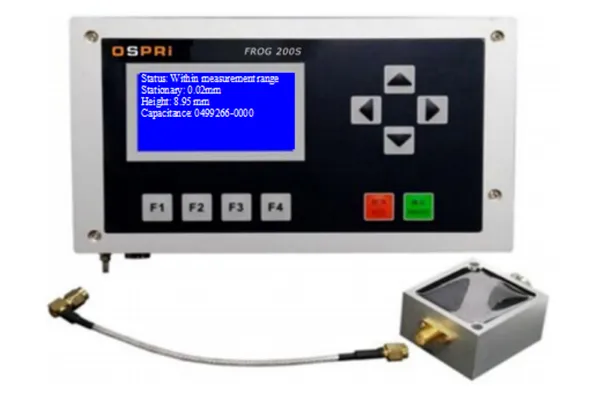

    This capacitive height sensor and controller is designed to keep laser cutting consistent and reliable by controlling the distance between the nozzle and the workpiece surface. During the laser cutting process, factors such as uneven material surfaces or the high pressure of assist gas can cause the distance between the nozzle and the workpiece to fluctuate. This not only affects cut quality but may even damage the nozzle. Our fiber laser control system ensures a constant stand-off distance at high cutting speeds, protecting the nozzle from collisions and significantly improving cutting performance.

    Request a Quote
    Product Manual
    Features
    • Sampling rate: 1000 times per second
    • Static measurement accuracy: 0.001 mm
    • Height control range: 0-25 mm
    • Signal transmission distance: up to 100 m cable length, with strong anti-interference capability
    • Supports network communication, USB upgrades, and online firmware updates
    • Built-in jitter suppression to counter disturbances from gas flow and spatter
    • Compatible with any cutting head and nozzle, with adaptive capacitance parameters
    • Safety functions include collision alarm, missing nozzle electrode detection, and sensor disconnection alert.
    • Supports 1-point, 2-point, and 16-point calibration with curve display
    • Real-time capacitance calibration compensates for temperature and other environmental influences
    • 16-bit DA output: ±10V control signal in sensor mode or 0-10V linear height signal in measurement mode, updated 1000 times per second
    • 14-bit AD input: monitors external analog voltage (0-10V) to adjust static distance in real time
    • Oscilloscope function for live monitoring of laser nozzle sensor activity
    • Diagnostic testing to check AD/DA conversions in real time
    • Optional EtherCAT bus communication
    Related Laser Cutting Heads
    Find The Perfect Laser Head for Your Laser Processing Needs

    Whether you need a laser head built to your specifications or guidance on choosing the right solution, our team is here to help.

    Get in Touch
    Laser Cutting Heads
      1. Hardware & Tools
      2. Hardware & Tools Laser cutting heads for the laser processing of fasteners, power tools and hand tools
      1. Bathroom Accessories
      2. Bathroom Accessories Laser cutting heads for processing metal parts in the bathroom industry
      1. Automotive

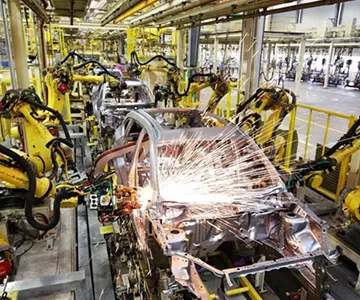

      2. Automotive Laser cutting heads for the metal processing in the automotive industry
      1. Lithium Battery
      2. Lithium Battery Laser cutting heads for battery production
      1. 2D Flat Cutting

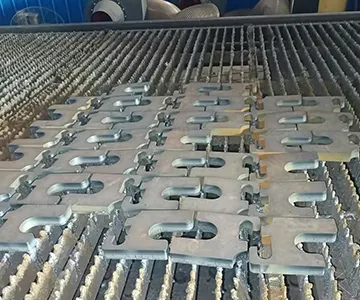

      2. 2D Flat Cutting Laser cutting heads for 2D flat metal sheet cutting
      1. Tube & Profile Cutting

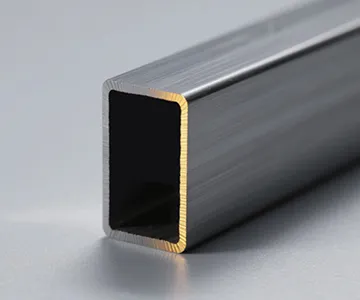

      2. Tube & Profile Cutting Laser cutting heads for the cutting of metal tubes and profiles
      1. Bevel Cutting

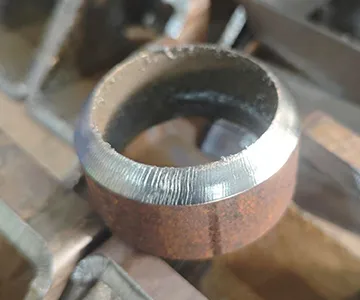

      2. Bevel Cutting Laser cutting heads for producing bevelled edges on metals
