LCF15A

15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)

Intelligent information auto focus laser cutting head for processing metal tubes and profiles with power ratings of up to 15kW

LCF15A1

15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)
  • 15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)
  • 15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)
  • 15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)

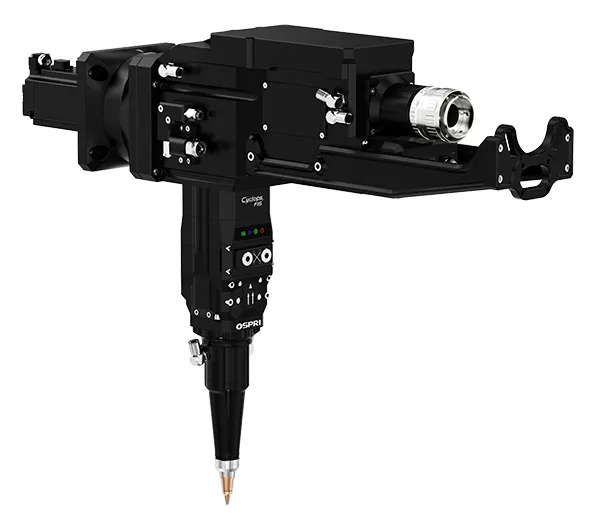

    • Front laser interface/connector, figure 1 with mounting bracket, figure 2 without mounting bracket

    Request a Quote
    Product Manual

    LCF15A2

    15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)
  • 15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)
  • 15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)
  • 15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)

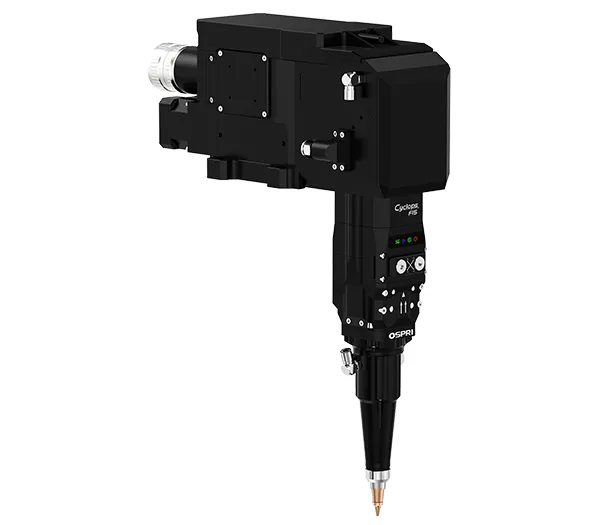

    • Rear laser interface/connector, figure 1 without mounting bracket, figure 2 with mounting bracket

    Request a Quote
    Product Manual

    Designed for processing metal tubes and structural profiles, this fiber laser cutting head provides high-performance with power ratings of up to 15kW. An extended sensor makes it easily adaptable to different profile types and ensures stable cutting performance. The built-in collision protection system allows for rapid recovery after impact, while enhanced signal feedback provides timely alerts to maintain consistent quality and reduce downtime. Its design simplifies after-sales maintenance, making it reliable for long-term industrial use.
    Specifications
    Type Auto Focus Fiber Laser Cutting Head
    Model LCF15A1/LCF15A2
    Interface Type Q+, QD, LOE3.1, LOE3.2
    Wavelength 1064±10nm
    Rated Power ≤15kW
    Focal Length 250mm/300mm
    Collimation Length 100mm
    Focusing Range -50mm~+50mm / -70mm~+70mm
    Centering Adjustment Range ±1.5mm
    Focusing Speed 400mm/s
    Repeated Positioning Accuracy of Focusing Axis 0.05mm
    A-axis Movement Range ±45°
    Rated Rotation Speed 30r/min
    Positioning Accuracy 1arcmin
    Auxiliary Gas Pressure ≤3MPa
    Weight 9.5kg
    Application

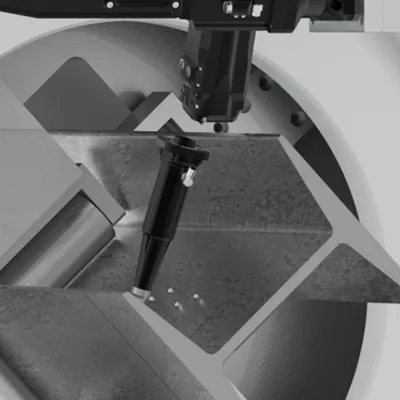

    This right-angle fiber laser cutting head is optimized for tube and profile cutting, including round tubes, square tubes, and H-beams. It is suitable for processing carbon steel, stainless steel, and other common industrial metals.

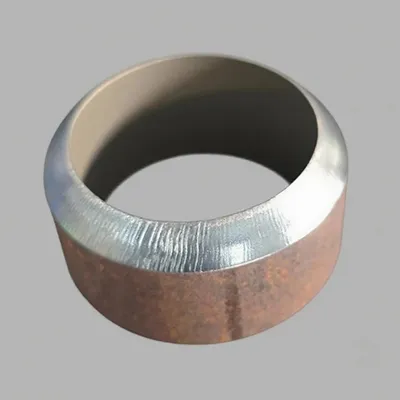

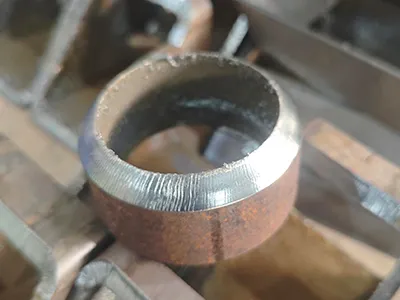

    • 15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)8mm carbon steel, 12kW - 8 m/min, nitrogen cutting

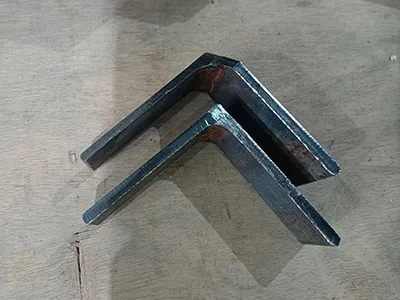

    • 15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)5mm angle iron, 3kW

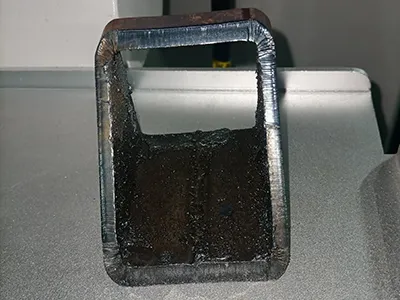

    • 15kW Fiber Laser Bevel Cutting Head (Single Pendulum Right Angle)6mm carbon steel square tube, 2.4kW
    Features
    Extended reach for complex profiles
    Extended reach for complex profiles

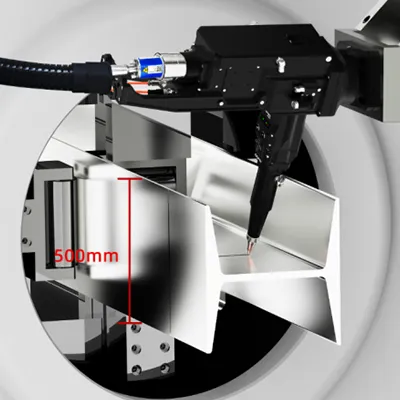

    500 mm bevel cutting capability ensures smooth processing of large structural profiles

    Collision protection for reliable operation
    Collision protection for reliable operation

    Built-in laser nozzle sensor for non-destructive collision protection, allowing rapid recovery and uninterrupted production

    Stable and consistent cutting quality
    Stable and consistent cutting quality

    Equipped with an integrated capacitance amplifier for fast response and low interference, ensuring precise and stable cutting performance

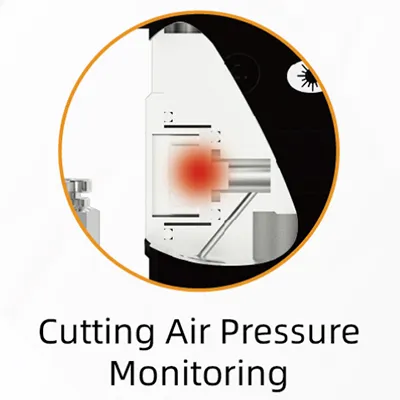

    Smart Air Pressure Monitoring
    Smart Air Pressure Monitoring

    Provides early warnings for leakage or low pressure of air, ensuring continuous processing and preventing downtime

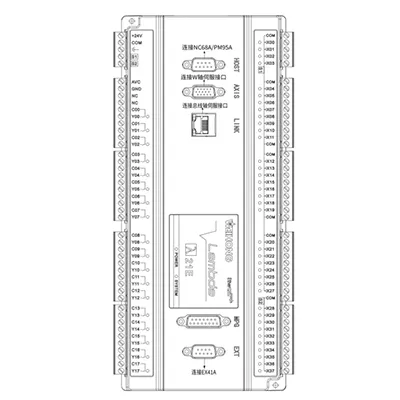

    EtherCAT local communication
    EtherCAT local communication

    Seamless connection with CNC systems for synchronized control and integrated machine performance

    Recommended Consumables & Spare Parts
    Collimating protective lens PMD32T2DS
    Focusing protective lens PMD34T5DS
    Cutting protective lens PMD34T5DS
    Collimating lens DF100D37DS
    Focusing lens DF200D37DS, SF250D37DS, SF300D37DS
    Seal ring 38.6×30.5×3.8， 38.6×30.5×3.8
    Ceramic ring FC-18
    Nozzle FSN21 Series
