GH15B

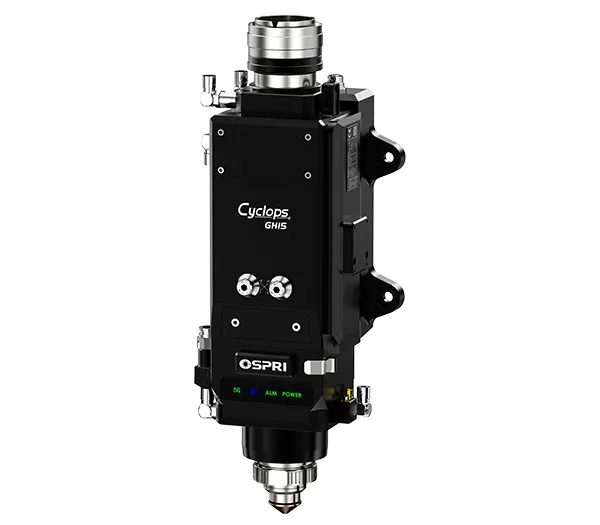

15kW Fiber Laser Bevel Cutting Head

Intelligent information auto focus laser cutting head for processing thick metal plates with power ratings of up to 15kW

15kW Fiber Laser Bevel Cutting Head
  • 15kW Fiber Laser Bevel Cutting Head
    Focal length 200m, flat nozzle
  • 15kW Fiber Laser Bevel Cutting Head
    Focal length 250m, pointed nozzle
  • 15kW Fiber Laser Bevel Cutting Head

    • GH15B

    15kW Fiber Laser Bevel Cutting Head

    Intelligent information auto focus laser cutting head for processing thick metal plates with power ratings of up to 15kW

    This high-power smart fiber laser cutting head is designed for processing thick metal plates. Equipped with 5G communication, it enables real-time monitoring of gas pressure leakage, lens contamination, and nozzle temperature, providing timely warnings and alarms. The built-in collision protection system ensures immediate shutdown in case of impact, reducing maintenance needs and enhancing overall cutting efficiency for heavy plate operations.

    Request a Quote
    Product Manual
    Specifications
    Type Auto Focus Smart Fiber Laser Cutting Head
    Model GH15B
    Interface Type QBH, QD, Q+, LOE/QF-D
    Wavelength 1080±10nm
    Rated Power ≤15kW
    Focal Length 200mm/250mm/300mm
    Collimation Length 100mm
    Focusing Range -39mm~+30mm
    Centering Adjustment Range ±1.5mm
    Focusing Speed 200mm/s
    Auxiliary Gas Pressure ≤3MPa
    Weight 7kg
    Application

    This auto-focus laser cutting head is applied in thick plate cutting and is suitable for processing materials such as carbon steel, copper, aluminum, and galvanized sheet.

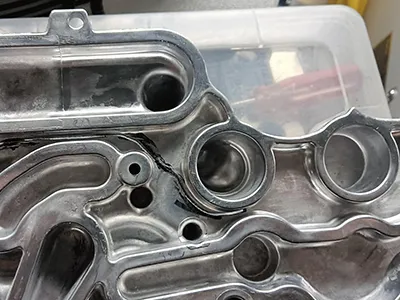

    • 15kW Fiber Laser Bevel Cutting HeadDefocus laser cutting of aluminum profiles

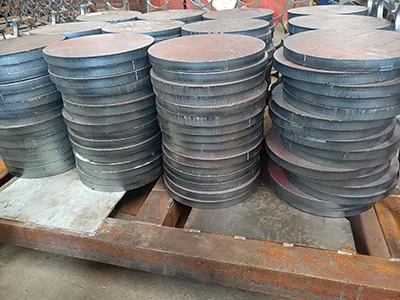

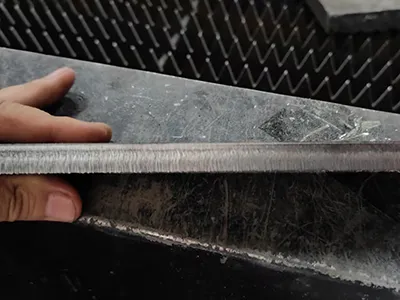

    • 15kW Fiber Laser Bevel Cutting Head22mm carbon steel, 12kW - 1.8 m/min, oxygen negative defocus cutting
    • 15kW Fiber Laser Bevel Cutting Head12mm carbon steel, 12kW - 4.5 m/min, air cutting
    Features

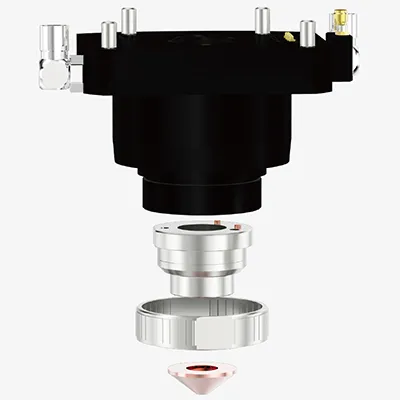

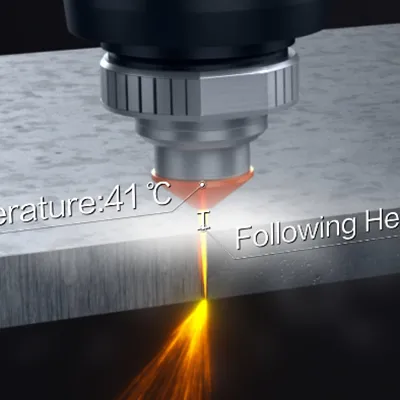

    Nozzle temperature monitoring
    Nozzle temperature monitoring

    High-temperature alarm automatically issues a shutdown command that ensures timely stop and alerts the operator to troubleshoot, preventing processing defects.

    Real-time height monitoring and control (with system support)
    Real-time height monitoring and control (with system support)

    Continuous transmission of nozzle temperature data dynamically adjusts cutting height maintains a consistent distance between nozzle and workpiece for stable cutting quality.

    Focus position control (with system support)
    Focus position control (with system support)

    Real-time lens temperature control allows automatic focus adjustment that prevents focus drift caused by lens heating, ensuring uniform cutting performance.

    Built-in gas pressure monitoring (with system support)
    Built-in gas pressure monitoring (with system support)

    Alarms are triggered if cutting gas pressure is abnormal, preventing damage and poor cutting caused by low or missing gas pressure.

    Automatic gas flow adjustment & pressure control (with system support)
    Automatic gas flow adjustment & pressure control (with system support)

    Detects differences between actual and set cutting gas pressure, and calibrates pressure automatically to ensure consistent cutting quality and protecting the head.

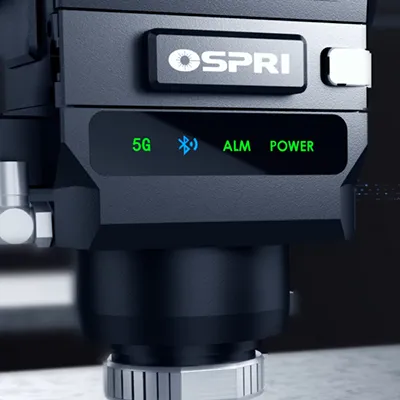

    Leakage detection & warning signal
    Leakage detection & warning signal

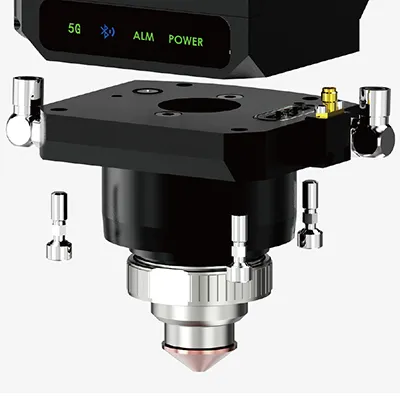

    Issues an alarm if the laser protection window seal fails and reminds operators to service or replace parts, preventing internal lens contamination.

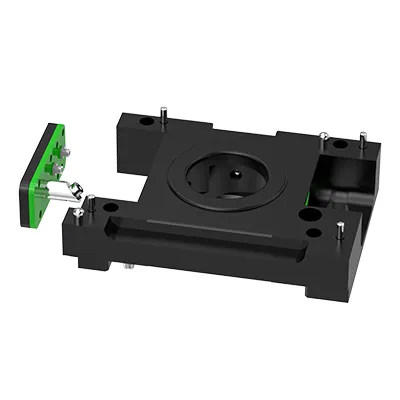

    Collision protection for safety
    Collision protection for safety

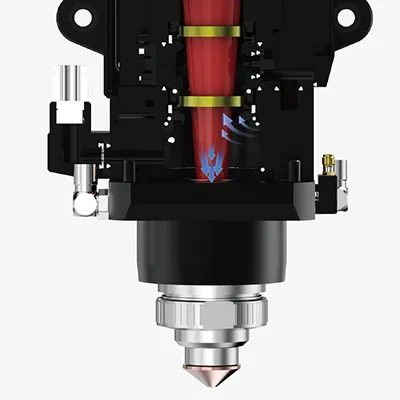

    Built-in sensor with dedicated blowing assembly that protects the laser head upon collision, while triggering an immediate shutdown signal.

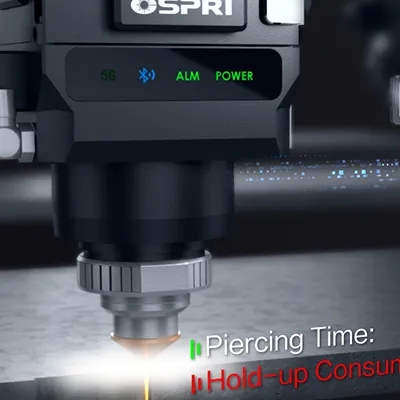

    Piercing monitoring for higher efficiency (with system support)
    Piercing monitoring for higher efficiency (with system support)

    Monitors piercing results in real time. Cutting begins immediately after penetration, eliminating delays and boosting productivity.

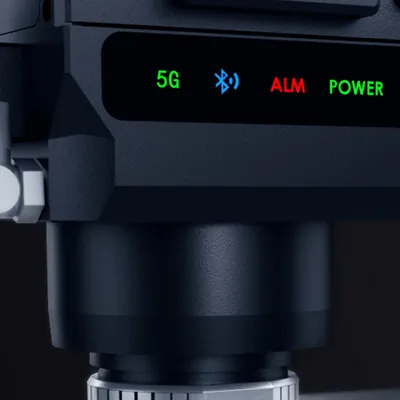

    Lens contamination monitoring & warning signal
    Lens contamination monitoring & warning signal

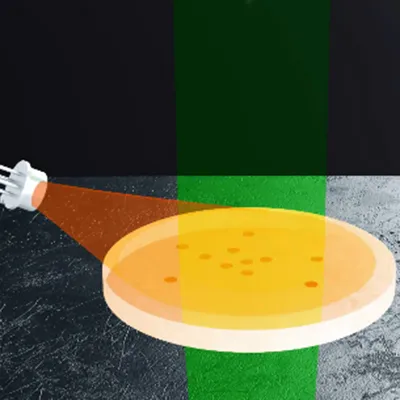

    Alerts when lenses become contaminated, with both warning and shutdown modes. This prevents poor cutting quality and laser head damage by ensuring timely lens replacement.

    Related Laser Cutting Heads
    Find The Perfect Laser Head for Your Laser Processing Needs

    Whether you need a laser head built to your specifications or guidance on choosing the right solution, our team is here to help.

    Get in Touch
    Laser Cutting Heads
      1. Hardware & Tools
      2. Hardware & Tools Laser cutting heads for the laser processing of fasteners, power tools and hand tools
      1. Bathroom Accessories
      2. Bathroom Accessories Laser cutting heads for processing metal parts in the bathroom industry
      1. Automotive
      2. Automotive Laser cutting heads for the metal processing in the automotive industry
      1. Lithium Battery
      2. Lithium Battery Laser cutting heads for battery production
      1. 2D Flat Cutting
      2. 2D Flat Cutting Laser cutting heads for 2D flat metal sheet cutting
      1. Tube & Profile Cutting
      2. Tube & Profile Cutting Laser cutting heads for the cutting of metal tubes and profiles
      1. Bevel Cutting
      2. Bevel Cutting Laser cutting heads for producing bevelled edges on metals
      1. 3D Cutting
      2. 3D Cutting Laser cutting heads for cutting metal complex components and structural parts

    Our high-power laser cutting head is designed for high-performance in thick plate processing. It integrates gas pressure monitoring, leakage detection, piercing detection, and nozzle temperature monitoring. These functions simplify thick plate cutting, improve stability, and allow efficient operation with easier maintenance.

    The specialized tube and profile laser cutting heads are capable of processing round tubes, square tubes, and H-beams. Suitable materials include carbon steel, stainless steel, and other industrial-grade metals.

    • Before use, wrap the head with protective tape to prevent dust accumulation in gaps during maintenance.
    • Do not attempt to clean or disassemble internal lenses if they become dirty or damaged, as this may cause further contamination. It is recommended to replace them directly.
    • Replacement of protective lenses, collimation lenses, and focusing lenses must be performed in a cleanroom environment (class 1000 or above).
    • When inspecting lenses, first use white paper to check for black spots on the red laser beam. Then, at low power, use black photosensitive paper to examine the beam spot. Finally, remove the lens and inspect it under a microscope for accuracy.
