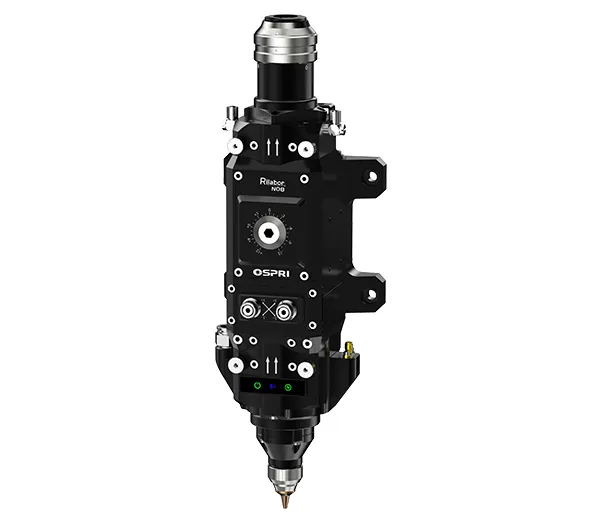

LCN08A

6kW/8kW Fiber Laser Cutting Head

Manual focus laser cutting head for processing thin metal sheets and metal tubes with power ratings of up to 6kW/8kW

6kW/8kW Fiber Laser Cutting Head
  • 6kW/8kW Fiber Laser Cutting Head
    LCN08A Fiber laser cutting head (150mm focal length)
  • 6kW/8kW Fiber Laser Cutting Head
    LCN08A Fiber laser cutting head (200mm focal length)
  • 6kW/8kW Fiber Laser Cutting Head

    • LCN08A

    6kW/8kW Fiber Laser Cutting Head

    Manual focus laser cutting head for processing thin metal sheets and metal tubes with power ratings of up to 6kW/8kW

    These manual-focus heads are designed for everyday production on thin sheet and metal tube at 6–8 kW power levels. They are equipped with an anti-collision protection design with quick reset to bring the laser head back to position after a bump, keeping stoppages short. A lens-contamination alarm flags when the protective window needs cleaning or replacement, which helps protect the internal optics and keeps maintenance costs down. The signal lines are reinforced and well-shielded, so the height follower and other sensors run steadily. Thanks to these laser cutting heads features, they helps every batch cut the same, with clean edges and consistent dimensions.

    Request a Quote
    Product Manual
    Specifications
    Type Manual Focus Fiber Laser Cutting Head
    Model LCN08A
    Interface Type QBH, G5
    Wavelength 1080±10nm
    Rated Power 6kW/8kW
    Focal Length 150mm/200mm
    Collimation Length 100mm
    Focusing Range -18mm~+18mm / -10mm~+10mm
    Centering Adjustment Range ±1.5mm
    Auxiliary Gas Pressure ≤3MPa
    Weight 3.0kg
    Application

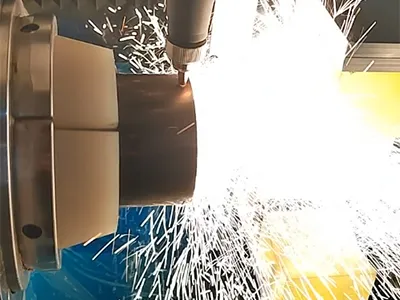

    These manual-focus laser cutting heads are used for cutting thin metal sheets and tubes. They handle carbon steel, stainless steel, and other common metals with steady edge quality.

    • 6kW/8kW Fiber Laser Cutting Head
    Features

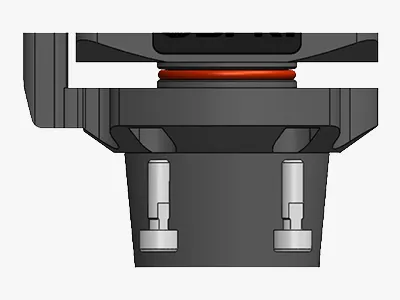

    Collision protection with quick reset
    Collision protection with quick reset

    Equipped with a collision protection mechanism to make sure the head gets back to its working position after an impact, which shortens stoppages and helps lower repair costs.

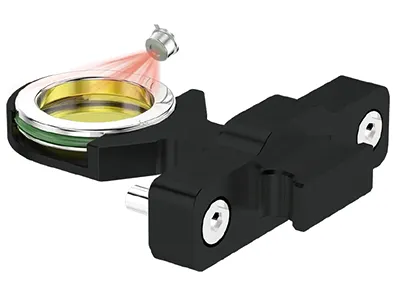

    Contamination monitoring with alarm and safe stop
    Contamination monitoring with alarm and safe stop

    Features a sensor to monitor the protective window and prompts when it’s necessary to change it. If contamination exceeds the limit, the controller issues an alarm and stops the cutting machine to prevent poor cuts and protect the head.

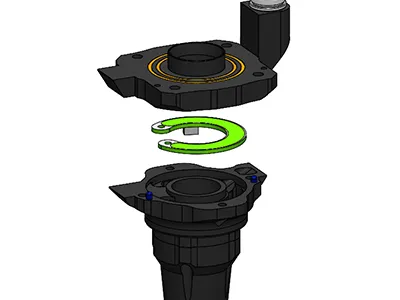

    Built-in capacitive height follower for stable tracking
    Built-in capacitive height follower for stable tracking

    On precision cutting lines, these laser heads integrate a capacitive standoff sensor with reinforced, well-shielded signal paths so height control stays steady and the cut follows smoothly at production speed.
    Related Laser Cutting Heads
    Find The Perfect Laser Head for Your Laser Processing Needs

    Whether you need a laser head built to your specifications or guidance on choosing the right solution, our team is here to help.

    Get in Touch
    Laser Cutting Heads
      1. Hardware & Tools
      2. Hardware & Tools Laser cutting heads for the laser processing of fasteners, power tools and hand tools
      1. Bathroom Accessories
      2. Bathroom Accessories Laser cutting heads for processing metal parts in the bathroom industry
      1. Automotive
      2. Automotive Laser cutting heads for the metal processing in the automotive industry
      1. Lithium Battery
      2. Lithium Battery Laser cutting heads for battery production
      1. 2D Flat Cutting
      2. 2D Flat Cutting Laser cutting heads for 2D flat metal sheet cutting
      1. Tube & Profile Cutting
      2. Tube & Profile Cutting Laser cutting heads for the cutting of metal tubes and profiles
      1. Bevel Cutting
      2. Bevel Cutting Laser cutting heads for producing bevelled edges on metals
      1. 3D Cutting
      2. 3D Cutting Laser cutting heads for cutting metal complex components and structural parts

    Automatic laser cutting heads are designed to handle reflective-metal jobs and improve productivity at the same power level. Some of the advantages of these laser scanner cutting heads, include:

    • Stable on reflective metals: Handles brass, copper, silver, polished stainless, and other high-reflectivity alloys by improving energy coupling and controlling back-reflection.
    • Higher precision: Beam scanning enables micron-level accuracy (with proper setup), ideal for fine features.
    • Much faster motion: The galvo scanner moves the beam, not the head, so the spot travels much faster than on a gantry machine. Using the same wattage, you often see multiple times the cutting speed and throughput.
    • Greater thickness capacity at the same wattage: Compared with a standard head of the same power, supports thicker material on reflective cutting processes.
    • Flexible path control: Easily executes complex contours, curves, micro-holes, fine pattern cutting, and engraving by steering the beam rather than the whole head.

    Follow these steps to mount, align, and verify before production:

    • Mount securely. Place the head at the designated location and fasten it with the correct hardware. Make sure the interface is rigid and free of play to prevent vibration or shift during operation.
    • Align and connect. Use alignment tools (or an alignment laser) to set the optical axis and standoff. Check all connections: fiber, assist-gas, air, sensor/IO cables, and water-cooling. Confirm there are no leaks or loose fittings.
    • Power-up and calibrate. Start the cutting machine and run the initial tests and calibration (focus, height-follower, scan field if applicable). Make any fine adjustments needed so the head cuts accurately and repeatably before loading production parts.
