LCN03A

3kW Fiber Laser Cutting Head

Manual focus laser cutting head for processing thin metal sheets and metal tubes with power ratings of up to 3kW

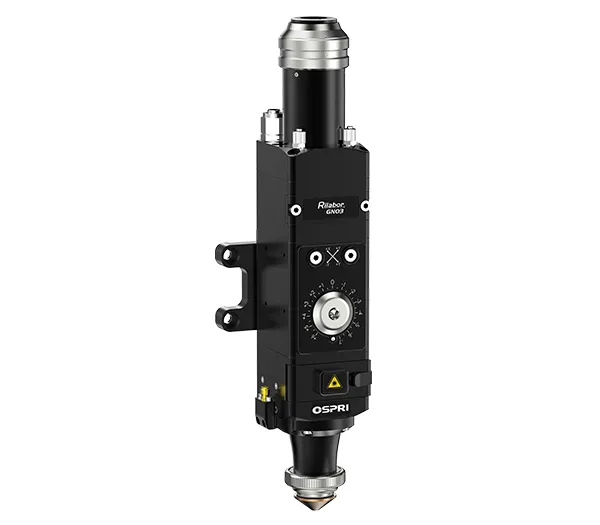

LCN03A 3 kW fiber laser cutting head (manual focus), with 125 mm focal length and flat nozzle

3kW Fiber Laser Cutting Head
  • 3kW Fiber Laser Cutting Head
  • 3kW Fiber Laser Cutting Head
  • 3kW Fiber Laser Cutting Head
    • Request a Quote
    Product Manual

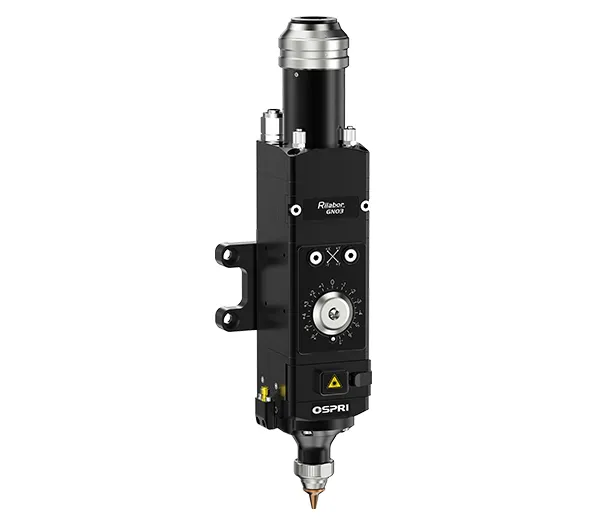

    LCN03A fiber laser cutting head (manual focus), with 125 mm focal length and pointed nozzle

    3kW Fiber Laser Cutting Head
  • 3kW Fiber Laser Cutting Head
  • 3kW Fiber Laser Cutting Head
  • 3kW Fiber Laser Cutting Head
    • Request a Quote
    Product Manual

    When cutting thin sheet and metal tubes at low power, our 3kW fiber laser cutting heads with manual focus can keep the cutting process simple and the results uniform. This series of laser cutting heads are easy to maintain: the press-fit dust cover seals the optics during cutting yet comes off quickly for cleaning or for a protective-window change. The lightweight body reduces load on the cutting machine axes, which helps motion stay precise at speed. A compact nose and stable focus also improve material use, so parts can be nested closer on sheet, tube remnants are shorter, and overall scrap is lower.
    Specifications
    Type Manual Focus Fiber Laser Cutting Head
    Model LCN03A
    Rated Power ≤3kW
    Wavelength 1080nm±10nm
    Focal Length 125mm/150mm
    Collimation Length 100mm
    Focusing Range -7mm~+6mm
    Focusing Speed 100mm/s
    Centering Adjustment Range ±1mm
    Auxiliary Gas Pressure ≤3MPa
    Weight 2kg
    Application

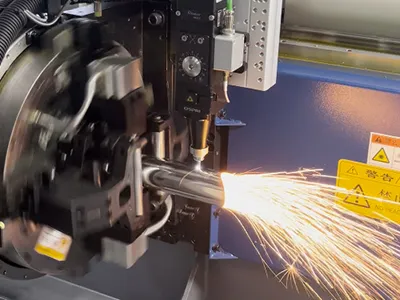

    Our manual-focus 3kW fiber laser cutting heads are used for thin-sheet and tube cutting. They handle carbon steel, stainless steel, and other common metals with steady edge quality.

    • 3kW Fiber Laser Cutting Head
    Features

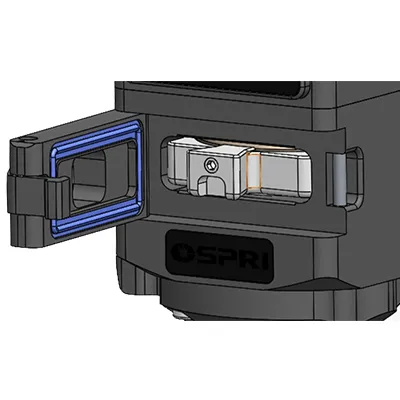

    Press-fit dust cover for cleaner optics
    Press-fit dust cover for cleaner optics

    These heads use a press-fit front cover that seals the optics from dust and spatter, extending protective-window life. It comes off quickly for cleaning or window changes, so maintenance is simple.

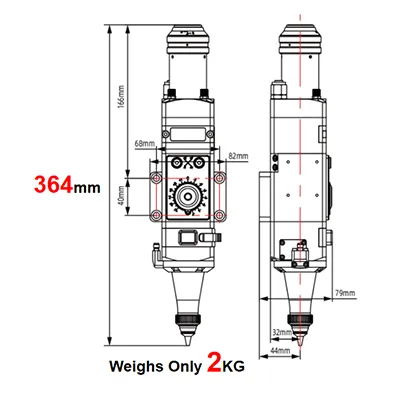

    Lightweight, compact body for easy integration
    Lightweight, compact body for easy integration

    The small, low-mass housing simplifies mounting on flatbed and tube cutting machines. Lower moving weight reduces load on the axes and helps motion stay precise at production speeds.

    Slim front end to cut closer and reduce remnant
    Slim front end to cut closer and reduce remnant

    The front end is shaped to clear clamps and fixtures, giving more usable stroke near the cut. That means tighter sheet nesting and shorter tube remnants, improving overall material yield.
    Related Laser Cutting Heads
    Find The Perfect Laser Head for Your Laser Processing Needs

    Whether you need a laser head built to your specifications or guidance on choosing the right solution, our team is here to help.

    Get in Touch
    Laser Cutting Heads
      1. Hardware & Tools
      2. Hardware & Tools Laser cutting heads for the laser processing of fasteners, power tools and hand tools
      1. Bathroom Accessories
      2. Bathroom Accessories Laser cutting heads for processing metal parts in the bathroom industry
      1. Automotive
      2. Automotive Laser cutting heads for the metal processing in the automotive industry
      1. Lithium Battery
      2. Lithium Battery Laser cutting heads for battery production
      1. 2D Flat Cutting
      2. 2D Flat Cutting Laser cutting heads for 2D flat metal sheet cutting
      1. Tube & Profile Cutting
      2. Tube & Profile Cutting Laser cutting heads for the cutting of metal tubes and profiles
      1. Bevel Cutting
      2. Bevel Cutting Laser cutting heads for producing bevelled edges on metals
      1. 3D Cutting
      2. 3D Cutting Laser cutting heads for cutting metal complex components and structural parts

    They’re intended for thin-sheet work across a broad range of jobs: signage and display parts, small metal fittings and brackets, electrical enclosures and cabinet panels, elevator panels, and thin components in aerospace and automotive (for example, trim pieces and small formed parts). They also suit short, custom runs that need clean edges and stable dimensions.

    The main assemblies use an integrated housing that improves sealing and durability, protecting the optics and extending service life. On the control side, the heads connect to plant CNC/smart control for remote status monitoring with real-time alerts and diagnostics. When readings drift, the system warns operators early to prevent faults, cut unplanned downtime, and avoid extra costs for parts or on-site service. Remote diagnostics speed up root-cause identification, reduce back-and-forth in after-sales support, and improve service efficiency.

    Low-power heads target thin-gauge metals such as carbon steel, stainless steel, and aluminum. As a rule of thumb, thickness is up to about 10 mm for low-power setups; the exact limit depends on the material grade and surface, assist gas, optics, and the overall cutting machine configuration.
