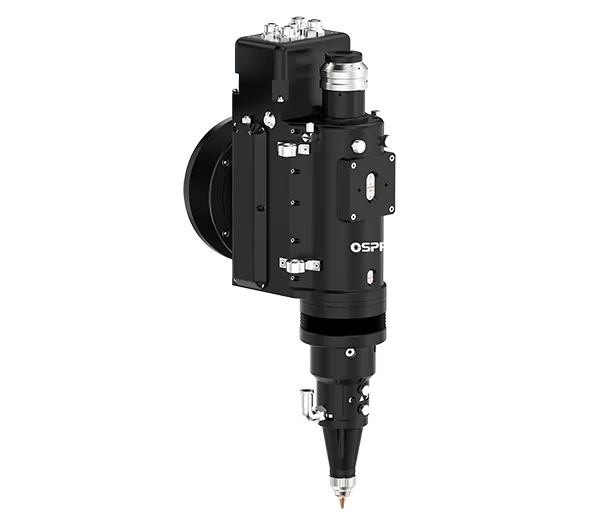

4kW 3D Robotic Laser Cutting Head

Auto focus laser cutting head with built-in follower axis for cutting complex 3D shapes

4kW 3D Robotic Laser Cutting Head
  • 4kW 3D Robotic Laser Cutting Head
  • 4kW 3D Robotic Laser Cutting Head

    • LCR04

    4kW 3D Robotic Laser Cutting Head

    Auto focus laser cutting head with built-in follower axis for cutting complex 3D shapes

    A common challenge in robotic 3D cutting is to keep the nozzle-to-part distance steady as the path moves over curves and formed sections, while focus adapts to local thickness changes. Our 4 kW 3D robotic laser cutting heads address this with auto focus and a built-in height follower (capacitive standoff control). These features hold the standoff constant on contoured panels and keep cut quality stable as the robot changes angle and speed. The body is compact and well-sealed, so it fits tight robot workspaces. A precise reset mechanism and an anti-collision design protect alignment after minor bumps, which helps production stay consistent.

    Request a Quote
    Product Manual
    Specifications
    Type Auto Focus 3D Robotic Laser Cutting Head
    Model LCR04
    Interface Type QBH
    Wavelength 1080±10nm
    Rated Power ≤4kW
    Focal Length 150mm
    Collimation Length 75mm
    Focusing Range -24mm~+20mm
    Centering Adjustment Range ±1.5mm
    Focusing Speed ≤200mm/s
    Repeated Positioning Accuracy of Focusing Axis 0.05mm
    Focusing Stroke 12mm
    Focusing Speed ≤50mm/s
    Follow-up Stroke 27mm
    Follow-up Speed ≤250mm/s
    Auxiliary Gas Pressure ≤2.5MPa
    Weight 7.0kg
    Application

    These 3D cutting heads run on five-axis cutting machines and robot cells for automotive body work, fenders and related exterior panels. They handle carbon steel, aluminum, copper, and galvanized sheet with steady edge quality across all.
    Features

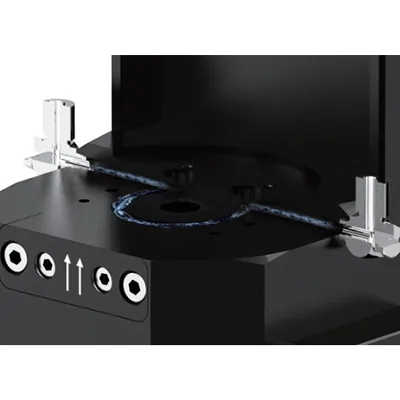

    QBH water-cooled fiber input for steady operation
    QBH water-cooled fiber input for steady operation

    Closed-loop water cooling at the QBH interface/connector keeps temperature stable and prevents condensation on the optics, so long runs remain consistent.

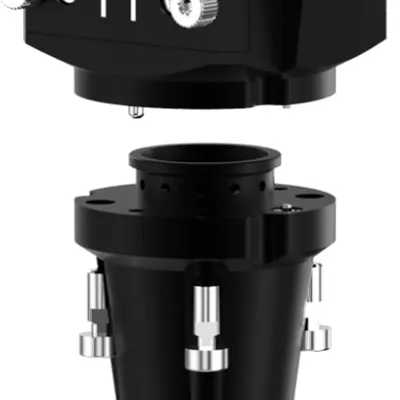

    Precision reset locating
    Precision reset locating

    A three-point conical locating system returns the head to its original position after a bump, so alignment stays accurate.

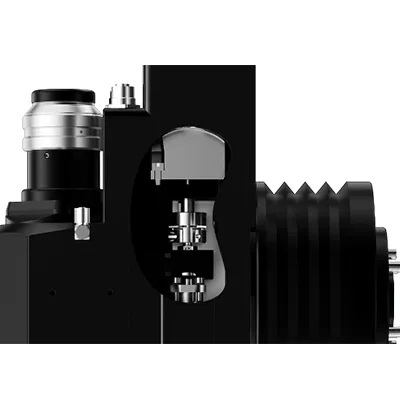

    Sealed built-in height follower with fast response
    Sealed built-in height follower with fast response

    The integrated follower module (capacitive standoff control) is fully enclosed and lightweight, keeping dust out while tracking surfaces quickly for precise, high-speed cutting.

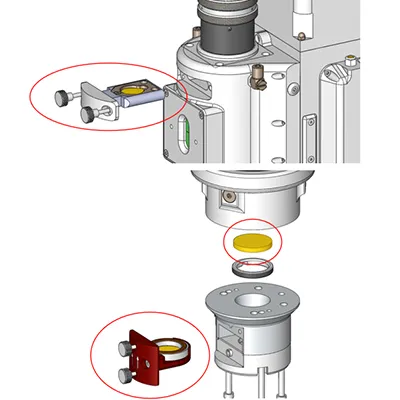

    Triple protective-window stack for optics protection
    Triple protective-window stack for optics protection

    Three protective windows shield the core focusing optics from spatter and dust, improving durability in daily production.

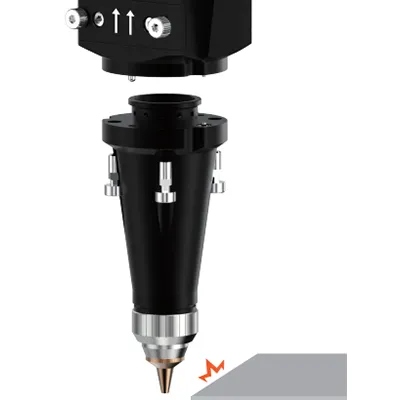

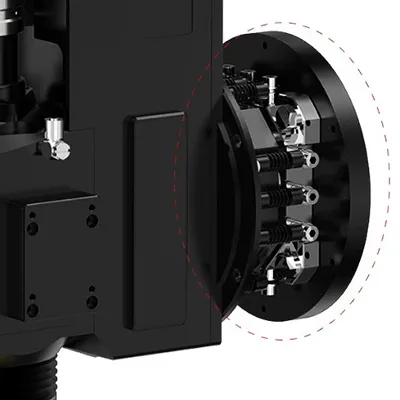

    Anti-collision protection with stop signal
    Anti-collision protection with stop signal

    A compliant sensor mount uses shear screws (designed to break safely on impact) to protect the head and simultaneously send a collision stop signal to the controller.

    Collision emergency stop for safe production
    Collision emergency stop for safe production

    Collision detection ties into the control system to cut power immediately after impact, preventing further damage.
