LWD03B0

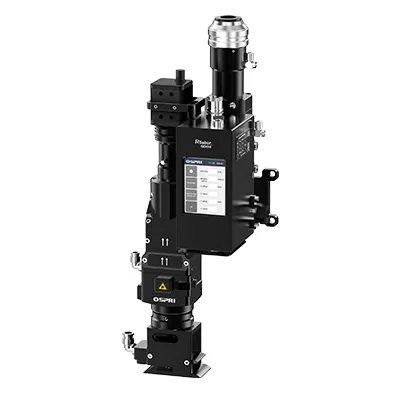

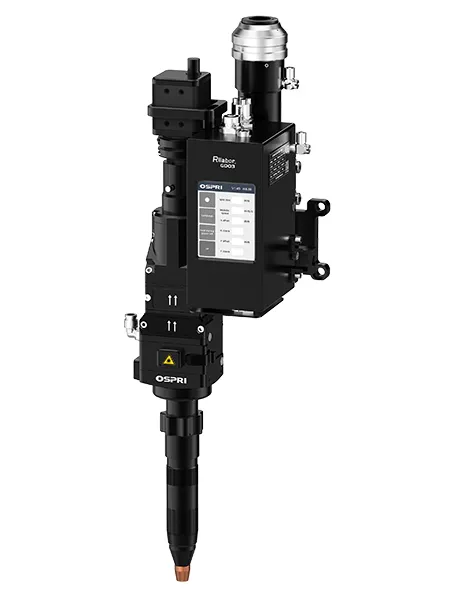

3KW Dual-Axis Wobble Laser Welding Head

Fiber laser welding head for processing various metals with power ratings of up to 3kW

3KW Dual-Axis Wobble Laser Welding Head
  • 3KW Dual-Axis Wobble Laser Welding Head
    Air knife blowing
  • 3KW Dual-Axis Wobble Laser Welding Head
    Coaxial blowing
  • 3KW Dual-Axis Wobble Laser Welding Head

    • LWD03B0

    3KW Dual-Axis Wobble Laser Welding Head

    Fiber laser welding head for processing various metals with power ratings of up to 3kW

    The 3kW double swing fiber laser welding head is designed for low-power applications where precision, consistency, and efficiency are crucial. Its compact latch-type structure and built-in collision protection simplify maintenance while ensuring safety during operation. A fully water-cooled body combined with a proprietary thermal insulation layer delivers superior heat dissipation, enabling long-term stable performance without overheating.

    Request a Quote
    Product Manual
    Specifications
    Model LWD03B0
    Rated Power ≤3kW
    Wavelength 1080nm±10nm
    Collimation Length 100mm
    Focal Length 200mm/250mm/300mm
    Scanning Range X: 0~5mm Y: 0~5mm
    Wobble Speed 3500mm/s
    Auxiliary Gas Pressure ≤1MPa
    Weight 2.4kg~3.6kg

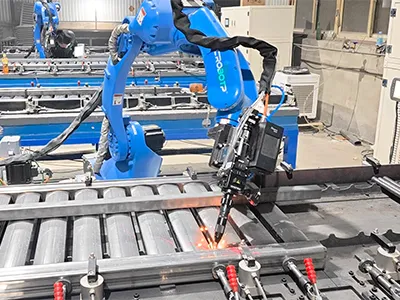

    Application

    Ideal for 3kW low-power fiber laser welding, this double-swing wobble welding head supports stainless steel, carbon steel, copper, and aluminum alloy processing. The dual-axis wobble motion enhances seam quality, reduces defects, and improves adaptability to different joint configurations, making it suitable for industries that demand both precision and durability.

    • 3KW Dual-Axis Wobble Laser Welding Head
    Features

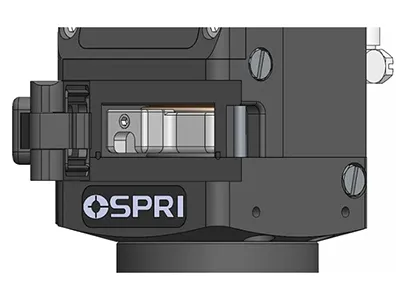

    Press-down structure for easy maintenance
    Press-down structure for easy maintenance

    Snap-fit latch design simplifies servicing and reduces downtime

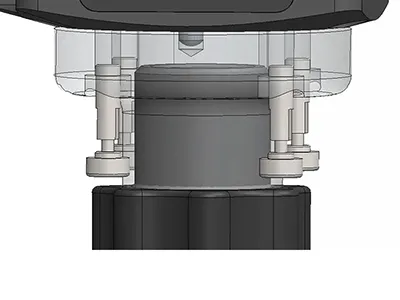

    Collision protection for reliable operation
    Collision protection for reliable operation

    Equipped with coaxial / air-knife blowing assembly, the head safeguards the optics from impact, allowing non-destructive collisions and rapid recovery for continuous operation.

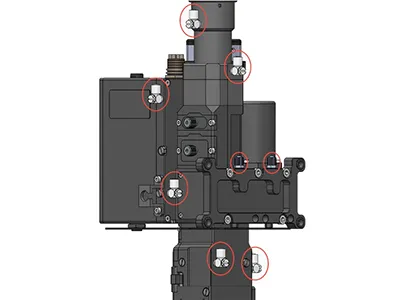

    Water cooling for stable operation
    Water cooling for stable operation

    Full-body water-cooling system ensures long-term stable performance

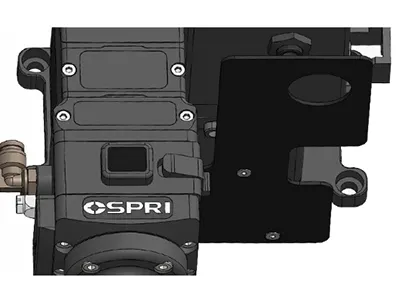

    Thermal insulation design for lower heat buildup
    Thermal insulation design for lower heat buildup

    Innovative insulation layer minimizes temperature rise and resists reflected heat

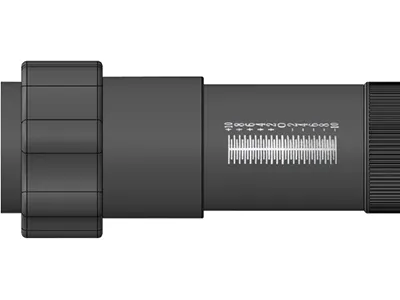

    Coaxial design for precision adjustment
    Coaxial design for precision adjustment

    Newly integrated coaxial scale allows fine and accurate adjustments

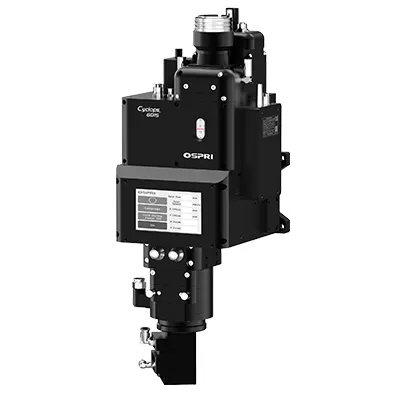

    Related Laser Head for Welding Equipment
